The shape and size of this carabiner makes it great for most uses, from connecting a belay device to your harness or as a connector at the end of a lanyard. The D-shape makes it one of the strongest and lightest locking carabiners Petzl makes. Perfectly suited for use with belay devices due to its symmetric shape on both ends of the carabiner. In addition, the D-shape has the highest strength-to-weight ratio of all Petzl carabiner designs. This carabiner comes with Petzl's Keylock system.
Available with manual locking (SCREW-LOCK) gate or auto-locking systems (BALL-LOCK, TRIACT-LOCK).
Certifications: CE EN 362, CE EN 12275, type K (K and B for M34 SL), UIAA
A lite alloy steel carabiner featuring double or triple action gates. Easily opened with one hand, but once released, the gate closes to a fully locked position. The carabiner gate and sleeve are stainless steel for problem-free operation. An offset inchD inch shape provides a smooth transfer of the Munter hitch when used as a belay and has ample volume to clip in large diameter ropes and over the rails of most litters.
The SMC CrossOver series aluminum carabiners are the first biner to meet both NFPA G-rating 1983 and ANSI Z359.1 strength requirements. These carabiners feature a new ergonomic single hand frame geometry allowing easy single hand operations. The CrossOvers have been specifically designed to meet all your work environment safety needs. Easy to use Dual or Triple Auto-Locking sleeves allow for single hand operations while working in mission critical environments. A traditional non-ANSI Screw-Lock version is also available.
The SMC FP Lite Allow has been specifically designed for all your fall protection needs. Built from the ground up giving you the best of the best in carabiner functionality, the FP features an easy opening Auo-Locking gate. You don't have to sacrifice strength for weight when working at height all day long.
Designed to make belaying single-person loads with a Munter hitch easier and more efficient, these large, pear-shaped aluminum carabiners are available in Screw-Lok, Two-Stage Quik-Lok, and Three-Stage Quik-Lok models. The gate opening is 1 in (25 mm).
Every carabiner is proof loaded to an MBS of 23 kN (5,170 lbf).
The SMC Kinetic Series has been specifically designed to meet all your personal protection requirements. Built from the ground up this carabiner gives you the best of the best in carabiner functionality. Extremely lightweight, you don't have to sacrifice strength for weight when working at height all day long.
The SMC ANSI Saftey Lock is manufactured using High Strength Zinc Plated Alloy Steel to maximize the strength to weight ratio and is ideal for an situation where security is critical. Locking the sleeve on the gate rather than the body of the carabiner provides greater overal strength and smooth action.
The Most Advanced General-Use Rescue Carabiner on the Market. Rescuers working in the most demanding circumstances will appreciate our ProSeries Aluminum Carabiners, the first aluminum carabiners to meet NFPA strength requirements for general use. Combining high performance with minimum weight, these carabiners significantly reduce the weight of a rescuer's gear while maintaining the highest possible margin of safety. The patented key-lock design eliminates snagging when removing the carabiner from your harness, and a redesigned gate provides a full 1.1 inch (28 mm) opening on the standard size version and a 2.1 inch (53 mm) opening on the XL version. Gate choices include the traditional Screw-Lock, our easy-to-open-with-one-hand Auto-Lock and our innovative Manual-Lock. Both of the XL carabiners have a removable keeper pin. Every carabiner is proof loaded.

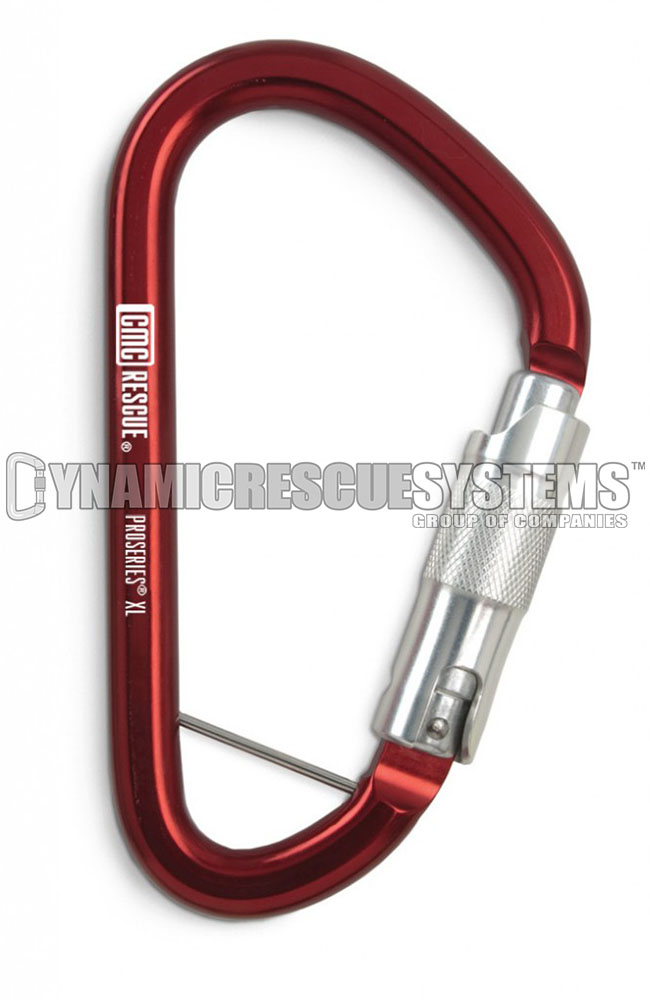

The Most Advanced General-Use XL Carabiner on the Market. Rescuers working in the most demanding circumstances will appreciate our ProSeries XL Aluminum Ladder Hook Carabiners, the first aluminum carabiners to meet NFPA strength requirements for General Use. Combining high performance with minimum weight, these XL-sized specialty carabiners significantly reduce the weight of a rescuer's gear while maintaining the highest possible margin of safety. The patent pending key-lock design eliminates snagging when removing the carabiner from your harness or ladder belt, and the XL size provides a full 2.1-in. (53-mm) gate opening for secure fast-action connections to ladders or anchors. Gate choices include the traditional Screw-Lock, or the easy-to-open-with-one-hand Auto-Lock. Both of the XL carabiner models have a removable stainless-steel keeper pin. Every carabiner is proof loaded.
Ideal for rescue and rope access, this anodized carabiner's patented key-lock design does not hang up when unclipping from your harness or web. An optimized D-shape maximizes its strength, and its wide gate opening fits over 1 inch (25 mm) diameter railings, unusual for a carabiner this compact and light. Safety indicators etched on the gate augment easy one-hand operation. Manual-Lock and Auto-Lock versions are available with a removable keeper pin for use with lanyards or for terminating escape or RIT lines. Every carabiner is proof loaded.
High-strength Vulcan carabiners are designed for rescue professionals. With a large gate opening and high strength, these carabiners are ideal for setting multiple anchors where conditions are difficult and weight is not an issue.
The Vulcan carabiner is available in two locking systems: manualåÊ(SCREW-LOCK system) or automatic (TRIACT-LOCK system) and two colours, gold or black.
|References||M73 TL||M73 SL||M73 TLA||M73 TLN||M73 SLN|
|Certification(s)||CE EN 362, NFPA 1983 General Use, EAC||CE EN 362, NFPA 1983 General Use, EAC||CE EN 362, ANSI Z359.1, NFPA 1983 General Use, CSA Z259.12, EAC||CE EN 362, ANSI Z359.1, NFPA 1983 General Use, CSA Z259.12, EAC||CE EN 362, NFPA 1983 General Use, EAC|
|Major axis strength||40 kN||40 kN||40 kN||40 kN||40 kN|
|Minor axis strength||16 kN||16 kN||16 kN||16 kN||16 kN|
|Open gate strength||11 kN||11 kN||11 kN||11 kN||11 kN|
|Gate opening||28 mm||29 mm||27 mm||27 mm||29 mm|
|Weight||285 g||265 g||305 g||305 g||265 g|
|Guarantee||3 years||3 years||3 years||3 years||3 years|
A large carabiner can come in handy in many places. This one's shape and size means it's useful for belaying and rappelling with the Munter hitch with single or double ropes, anchoring multiple ropes and slings and keeping the belay station organized. Pear shape facilitates use with the Munter hitch for single or double ropes. Large shape and gate opening can fit multiple slings and ropes.
Available with manual locking system (SCREW-LOCK) or auto-locking systems (BALL-LOCK, TRIACT-LOCK).
