PAW Rigging Plate - Petzl
Available in three sizes, the PAW rigging plate allows the organizing of the workstation and setup of multi-anchor systems. The hole design allows ropes or slings to be threaded for direct connection. Made of forged aluminum, it offers an excellent strength-to-weight ratio.
Description
- For easy organization of the workstation and setup of multi-anchor systems:
- 19 mm holes allow the locking sleeves of most carabiners to pass through, enabling the carabiner to be rotated

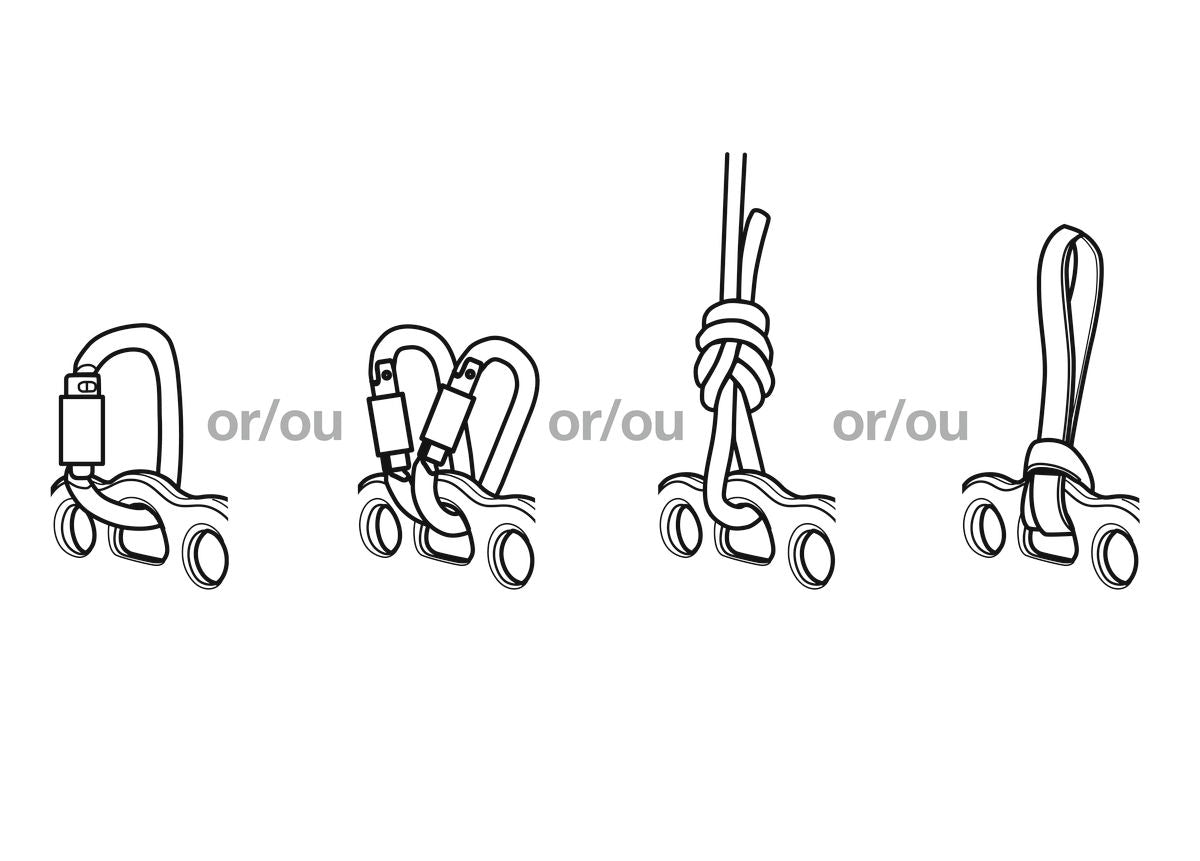

- hole design allows ropes or slings to be threaded for direct connection.
- main attachment hole accepts up to three carabiners
- the odd number of attachment holes enables the system to be centered and balanced
- up to three users can be connected at the same time
- Durability:
- made of forged aluminum for an excellent strength-to-weight ratio
- durable markings, thanks to the recessed area in the center of the plate

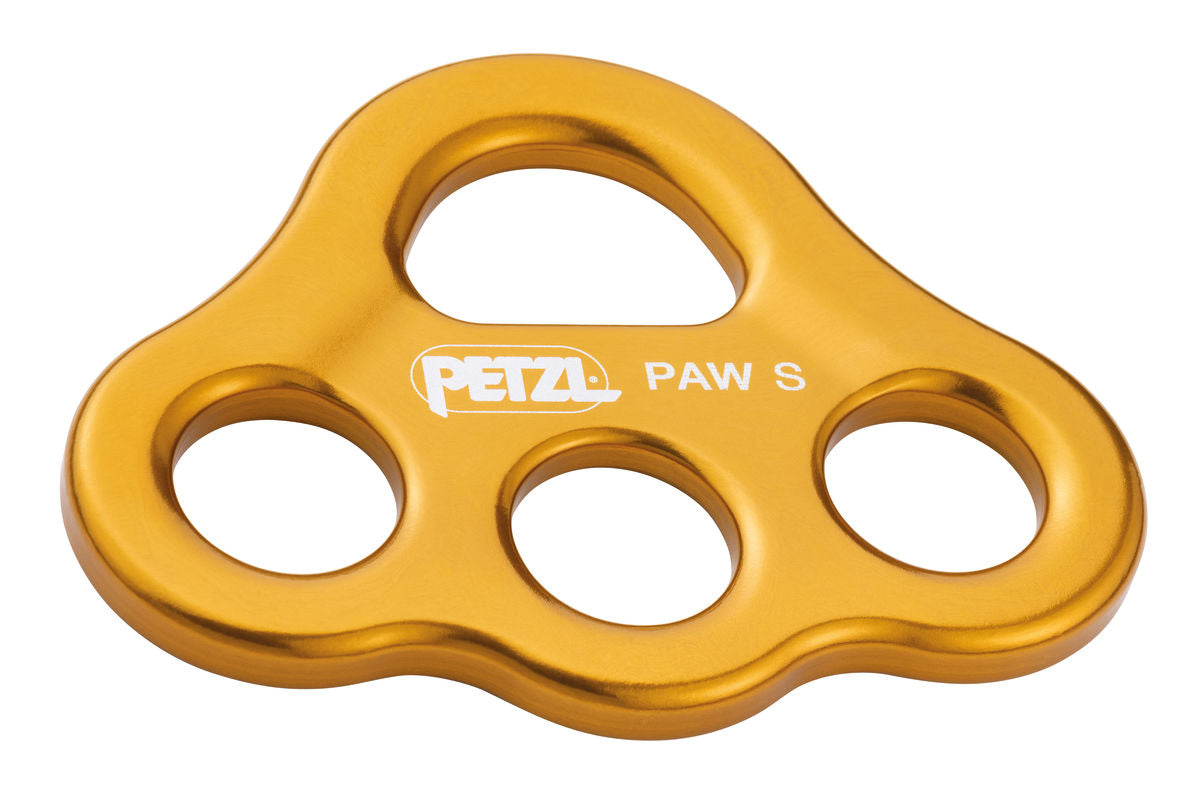

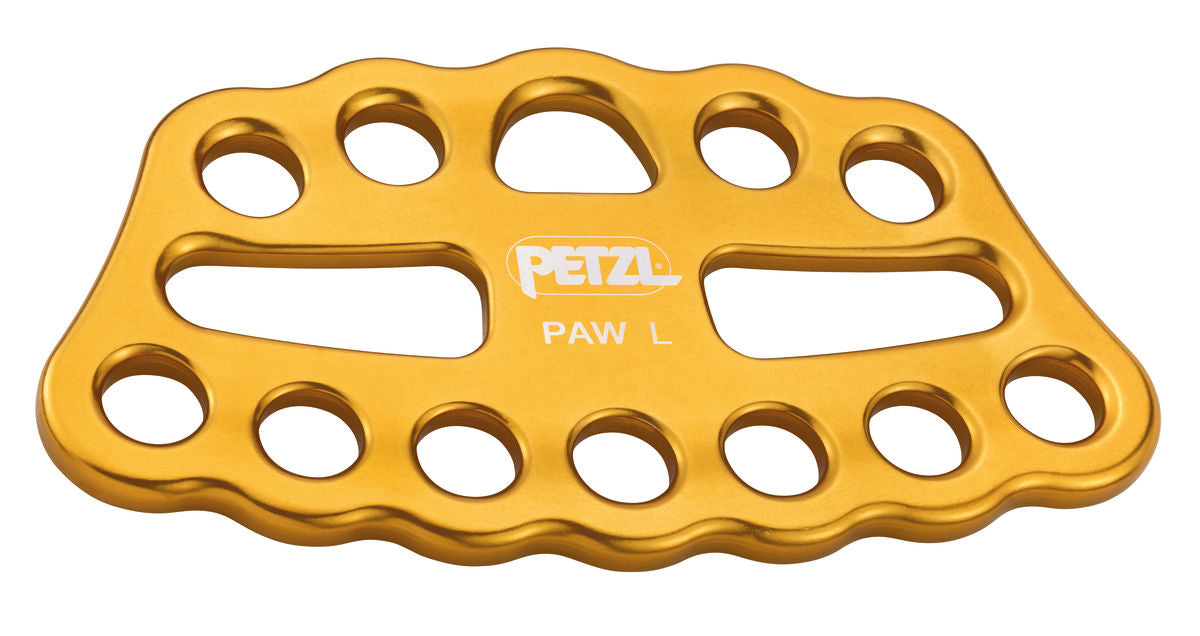

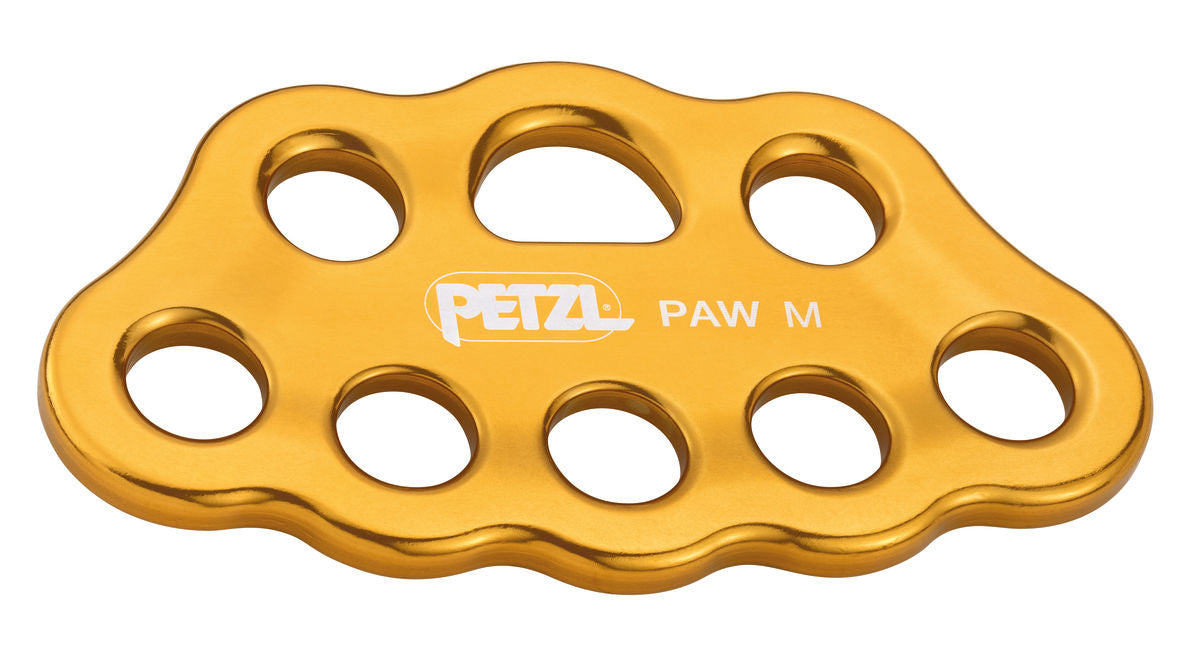

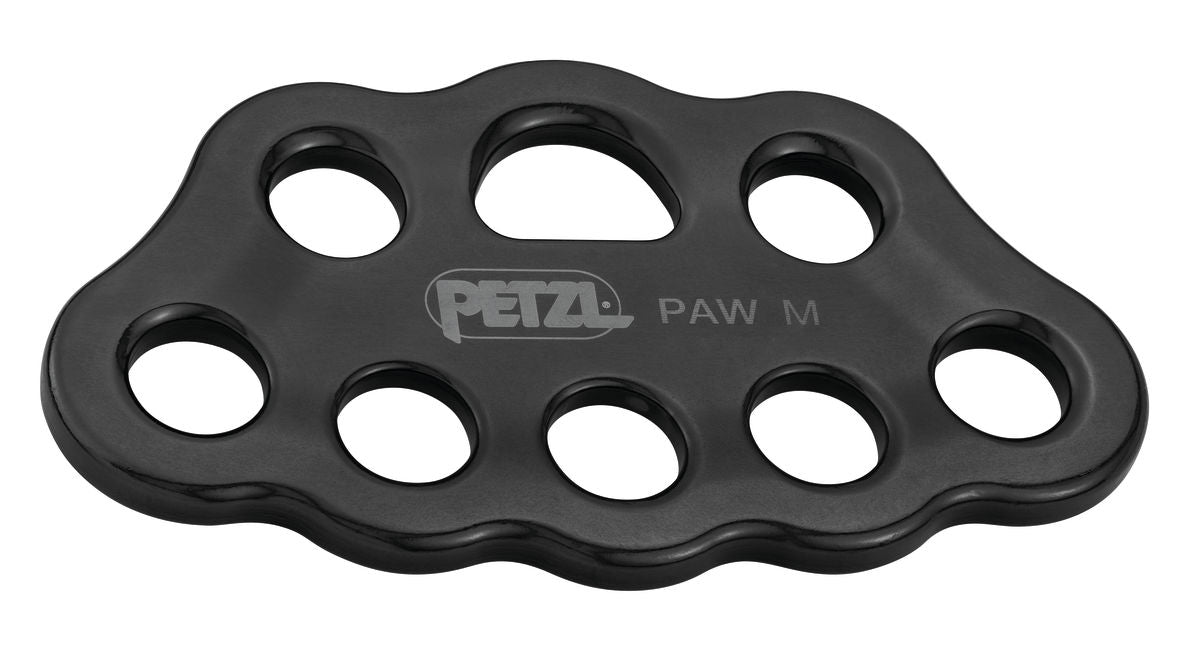

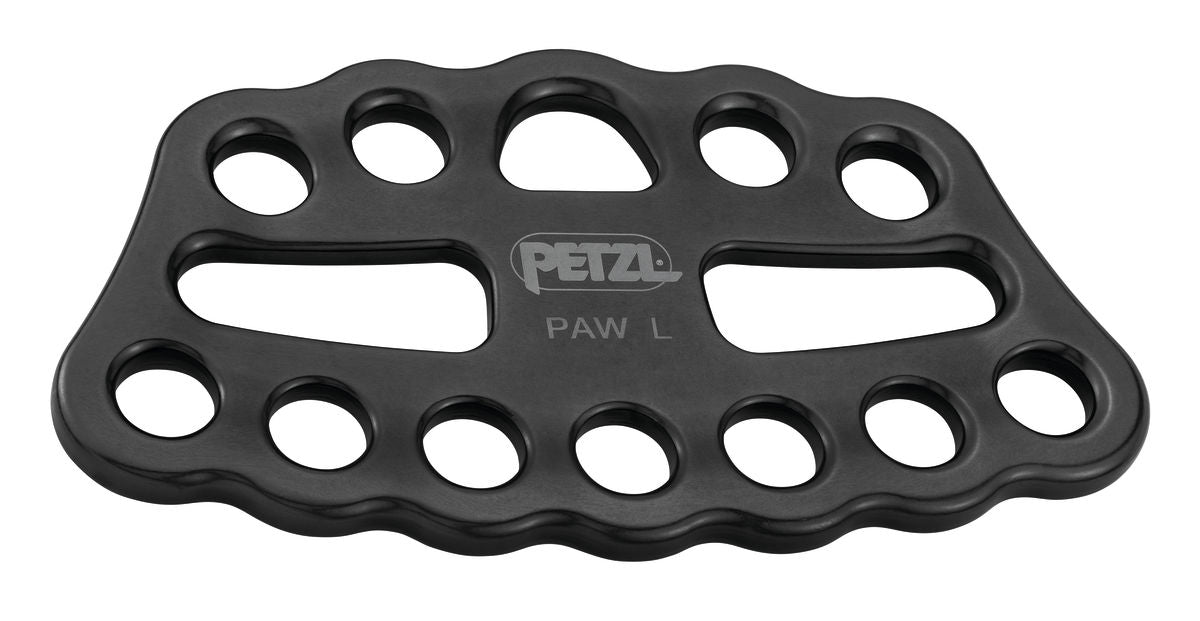

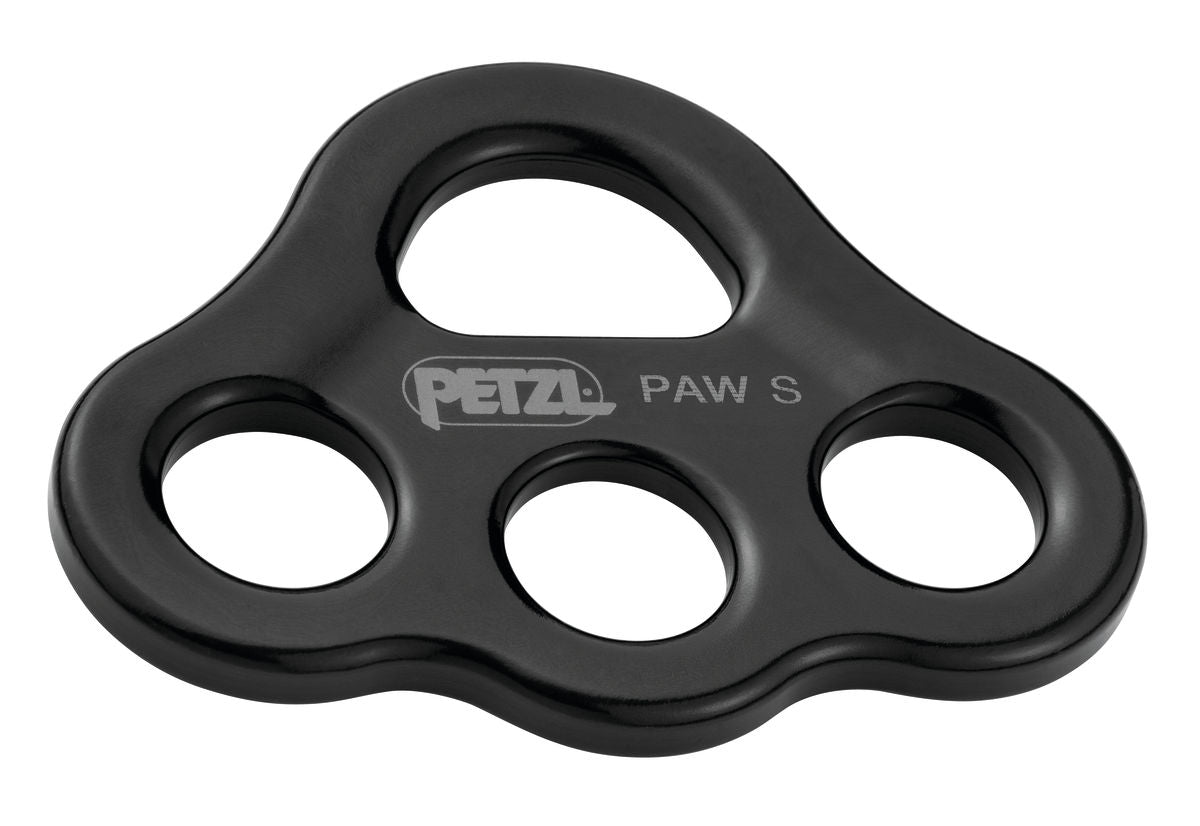

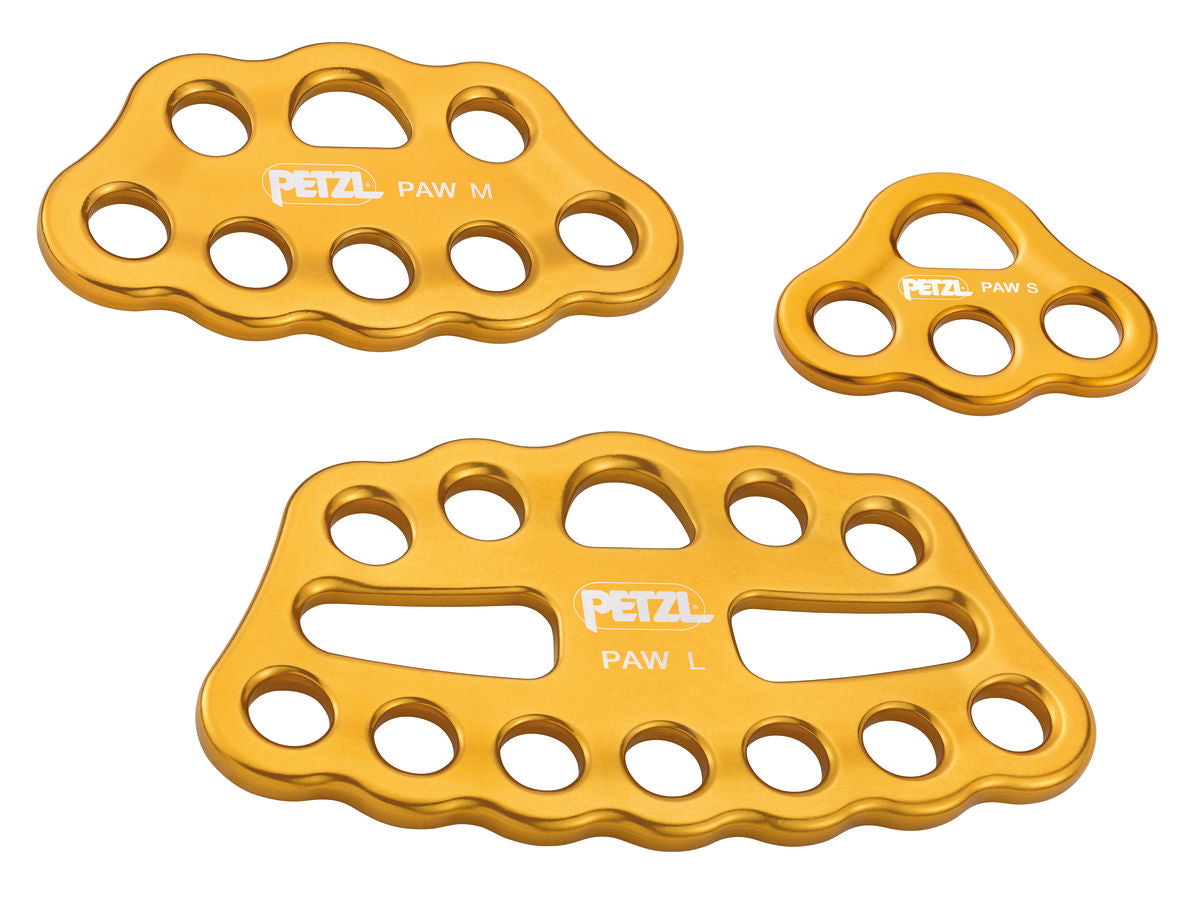

- Available in three sizes and a black version
- Two wide auxiliary attachment holes (size L only), compatible with the CONNEXION FIXE and CONNEXION VARIO anchor straps.
Specifications
- Material(s): aluminum
- Certification(s): CE, NFPA 2500 General Use, UKCA
References
| References | G063AA00 | G063AA01 | G063BA00 | G063BA01 | G063CA00 | G063CA01 |
|---|---|---|---|---|---|---|
| Size | S | S | M | M | L | L |
| Color(s) | Yellow | Black | Yellow | Black | Yellow | Black |
| Weight | 60 g | 60 g | 180 g | 180 g | 350 g | 350 g |
| Breaking strength | 36 kN | 36 kN | 45 kN | 45 kN | 50 kN | 50 kN |
| Guarantee | 3 years | 3 years | 3 years | 3 years | 3 years | 3 years |
| Inner Pack Count | 1 | 1 | 1 | 1 | 1 | 1 |
